VILLAGE LIFE SPRING REBOUND INERTIA HANDPUMPS

OR

WATER OSCILLATION HANDPUMPS

FOR RURAL WATER SUPPLY IN DEVELOPING COUNTRIES



COMPLETE MANUAL



Section 1: Presentation



Page 01 :  Presentation.

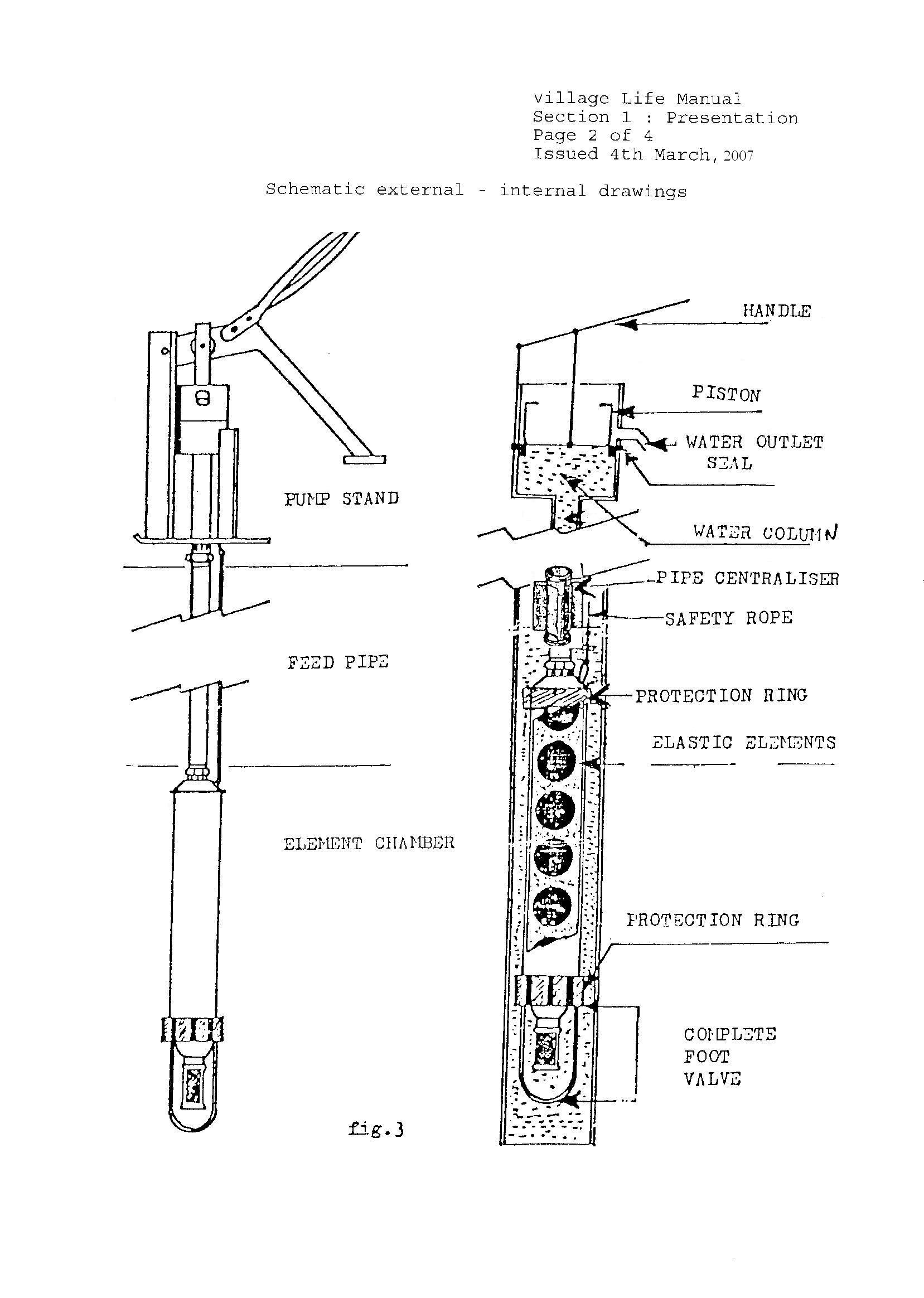

Page 02 :  Schematic external and internal drawings

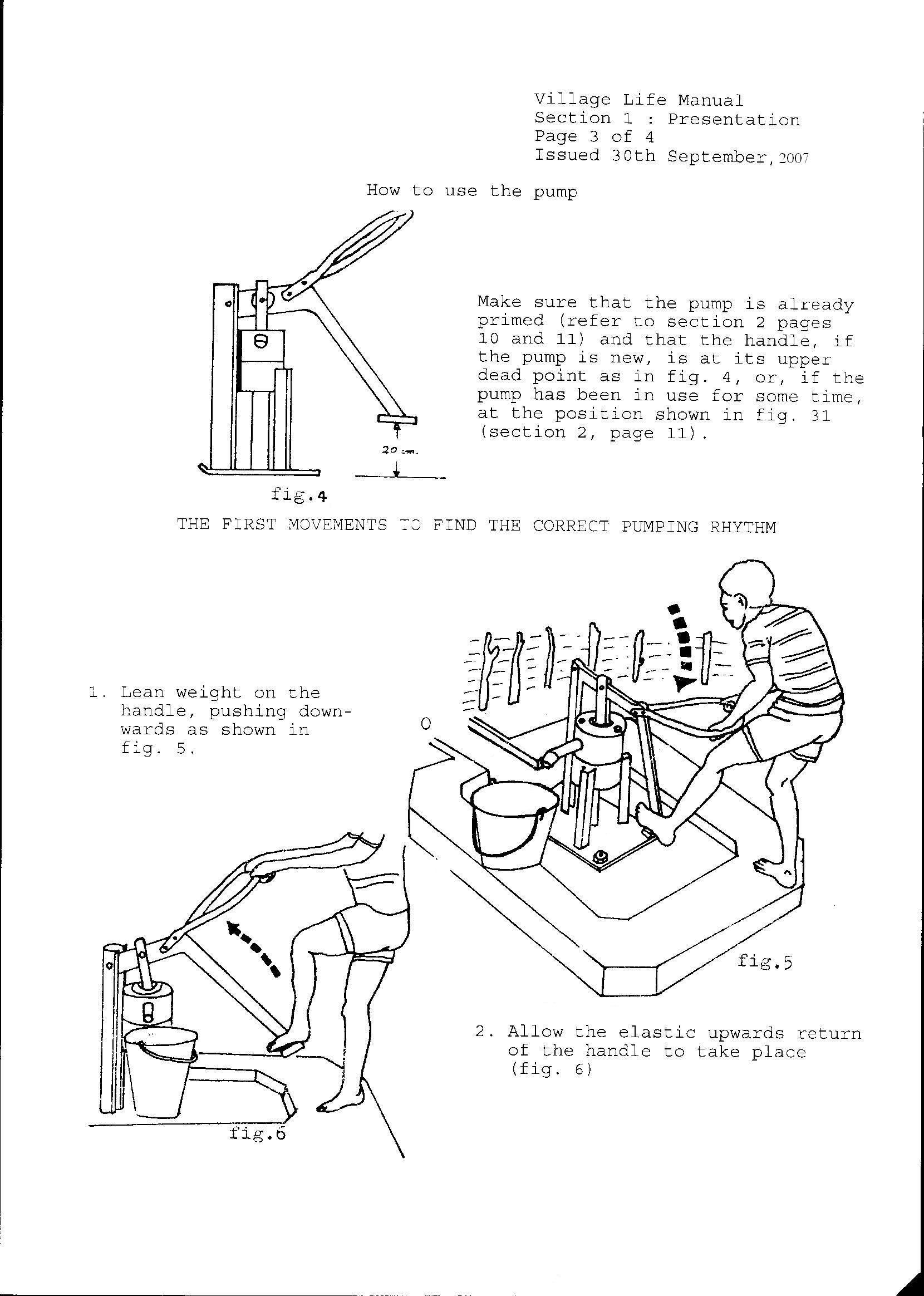

Page 03 :  How to use the pump.

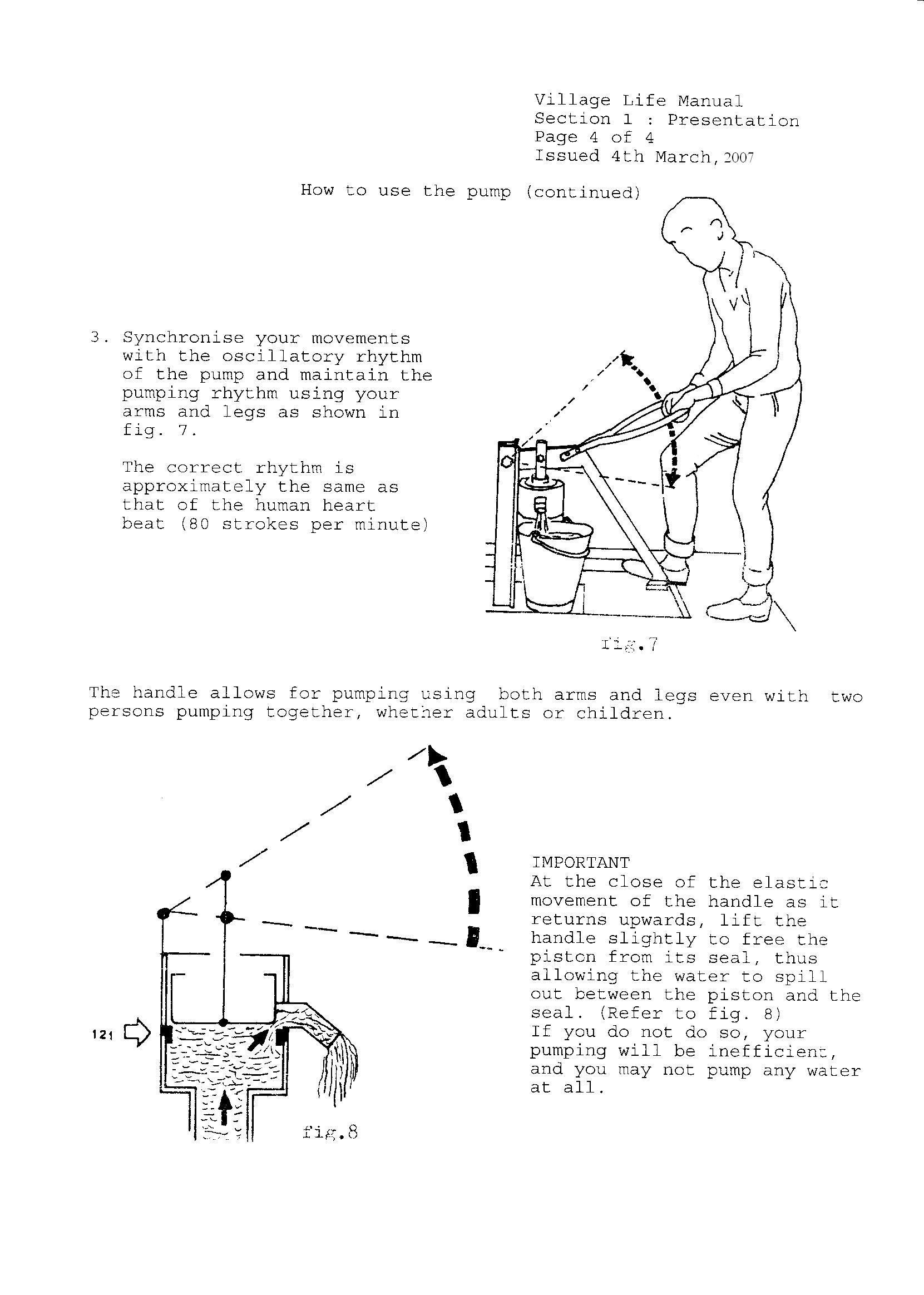

Page 04 :  How to use the pump (continued).
