LIST OF FILES RELATING TO HYGIENE EDUCATION, DRINKING WATER SUPPLY AND SANITATION







Drinking water structures.

The distributed drinking water supply structures are the structures which need the largest formal money capital investments. They will defined by the people themselves  during a capacitation workshop following the formation of most of the other structures planned. The following general indications are therefore subject to changes, some of them important, from one project application to another.    The following information should, however, give a fair idea of the size and nature of  project applications.

See drawings:

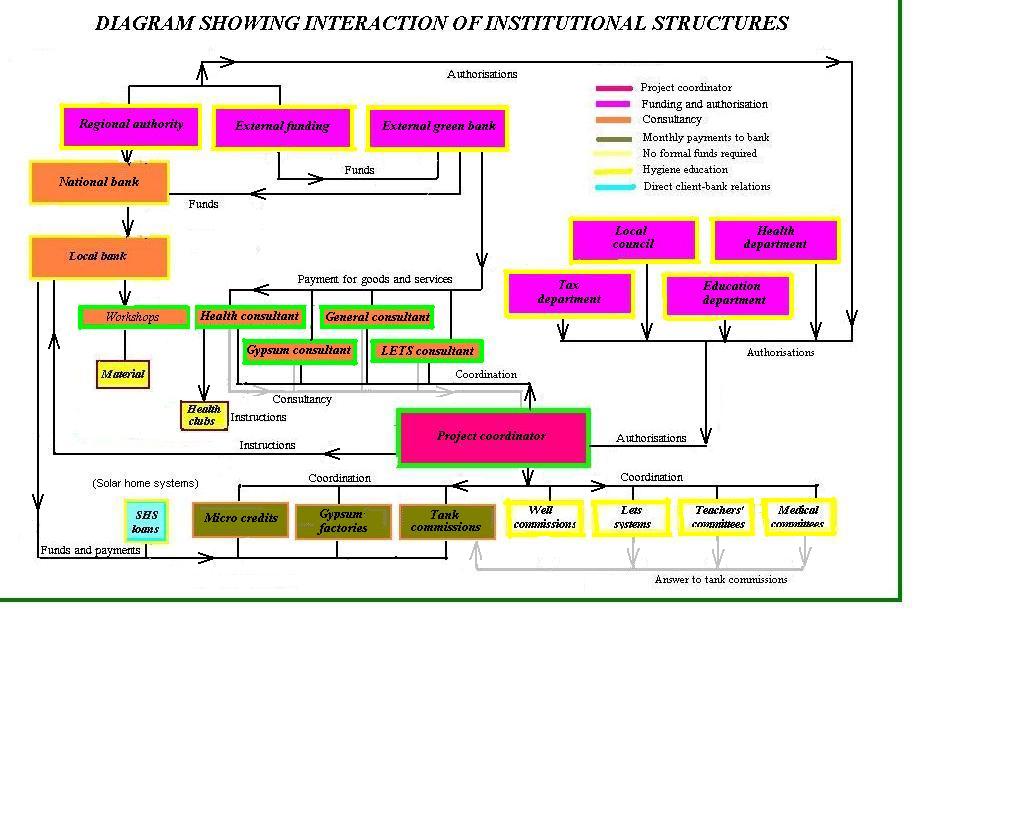

PROJECT STRUCTURES

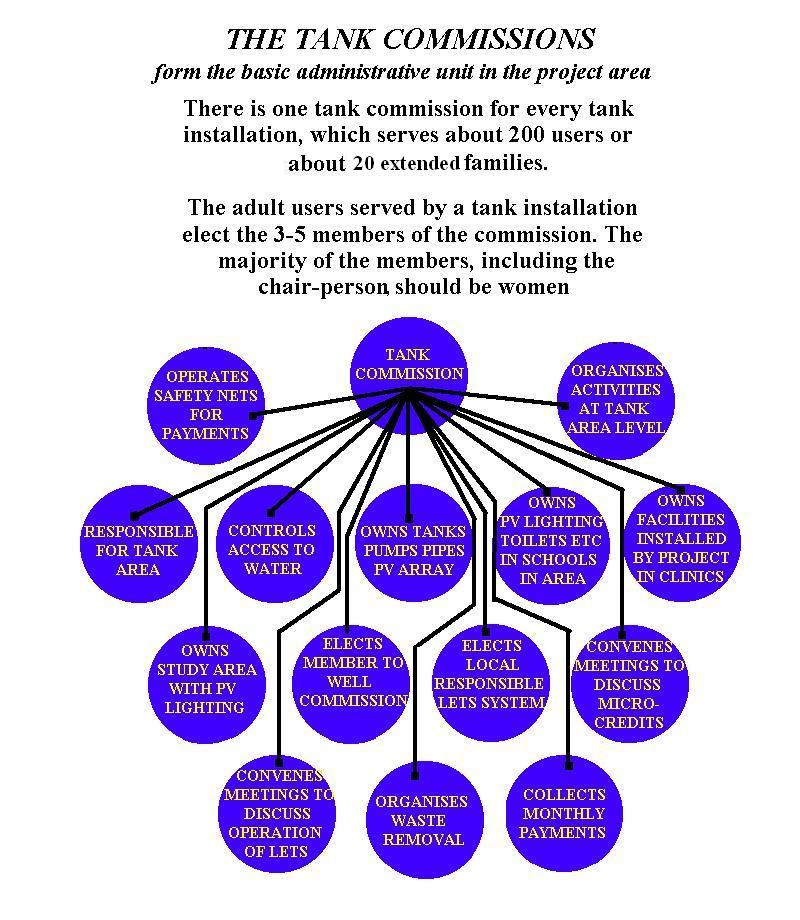

TANK COMMISSIONS – THE KEY STRUCTURES

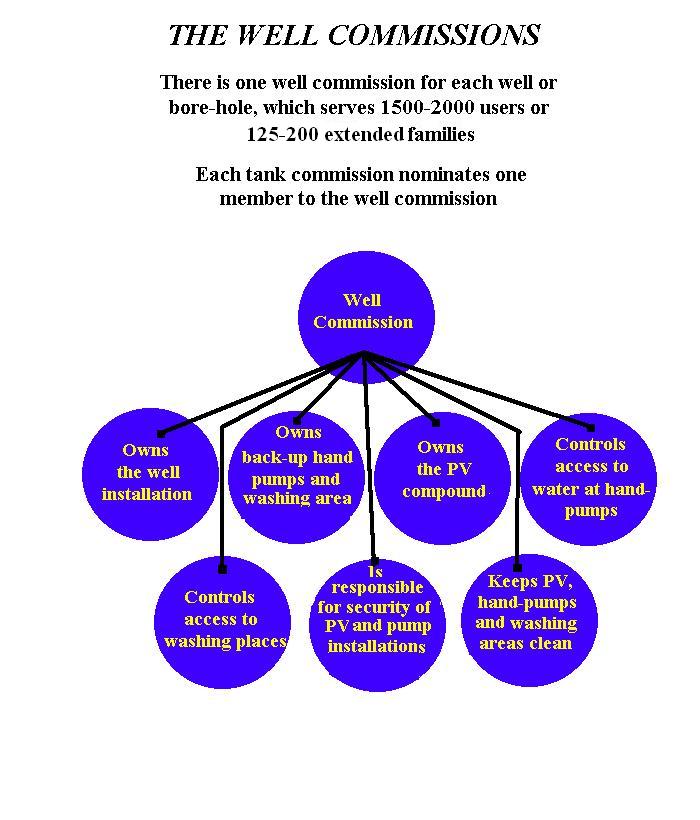

WELL COMMISSIONS
DRAWING OF DRINKING WATER SUPPLY STRUCTURES
DRAWING OF A DRINKING WATER TANK INSTALLATION AREA

DRAWING OF COMPLETE WASTE RECYCLING STRUCTURE




00.0.00.0. Water supply summary (example)

Villages
Inhabitants

Liters/day

Boreholes/wells

Handpumps

Solar pumps

Watts installed

Villages du canton de Sedomi

27071

0781

19

057

120

036000

Villages du canton de Gboto

20424

0515

13

039

069

020700















Total

47495

1296

32

96

189

56700

Basic information for drinking water supply  (example):

Inhabitants : 47495
Boreholes : 32
Approximately litres/day 1.296.000 (1296 m3)
Solar pumps installed : 189
Installed photovoltaic power : 56.7 KW
15 m3 water tanks :189
Back-up hand pumps : 96 being 32 triple sets.
Pipelines from boreholes to water tanks  (estimation) : 200000m.


Principles applied for placing drinking water structures
Boreholes and wells and their equipment
Water points near family homes
Some budget items  applicable to the water supply structures


Forward: documents for funding applications.

Back: financial and economic analysis for funding purposes.
